GPU Applications

ANSYS

ANSYS® and NVIDIA® work collaboratively to ensure the fastest performance for simulations running on ANSYS parallel software. Available since ANSYS 15.0 release, NVIDIA GPU acceleration enables faster results for more efficient computation and job turnaround times, delivering more license utilization for the same investment.


ANSYS solutions that support GPU accelerators for faster computational performance include:
  • Structural Mechanics: ANSYS® Mechanical® supports a full feature set.
  • Fluid Dynamics: ANSYS® Fluent® offers GPU support for pressure-based coupled solver and for radiation heat transfer models. Other pressure-coupled solver-based fluid solutions where GPU acceleration is supported include: ANSYS Polyflow for polymer and glass processing with as many as 10 million elements and ANSYS Icepak for electronics cooling simulation.
  • Electronics: ANSYS HFSS for both frequency and time-domain electromagnetic analysis. ANSYS HFSS SBR+ solvers for installed antenna performance simulations. ANSYS EMIT for radio frequency intereference (RFI) in complex environments. ANSYS DesignerSI for signal-integrity, power-integrity and EMI analysis.

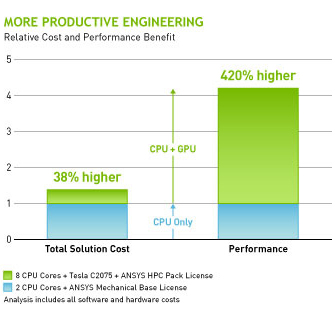

All HPC license products (HPC, HPC Packs, and HPC Workgroups) enable GPUs. Specifically, each GPU is treated the same as a single CPU core with respect to license requirements. As a result, more simulations are possible with existing HPC licenses combined with NVIDIA GPUs for dramatically increasing simulation productivity.

Note: HPC Enterprise doesn't exist anymore (it can be represented by WAN-ing of Workgroup).

ANSYS® provides significant performance speedups when using NVIDIA Quadro GP100, Quadro K6000 or the Tesla K40 active GPUs in workstations and Tesla P100 or Tesla K80 in servers. The new NVIDIA® Quadro® GP100 combines unprecedented double precision performance with 16 GB of high-bandwidth memory (HBM2), so users can conduct simulations during the design process and gather realistic multi-physics simulations faster than ever before.

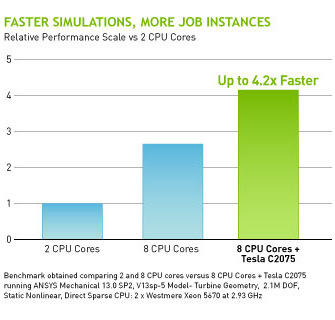

See the performance results on a standard ANSYS Mechanical benchmark below. To learn more, please read the ANSYS Tech Tip article "Accelerating Mechanical Solutions with GPUs"


Power Supply Module Quadro Ansys Mechanical

Turbine Quadro Ansys Mechanical

BGA Quadro Ansys Mechanical

"ANSYS is investing deeply in GPUs as a powerful accelerator technology, which is why ANSYS has expanded its NVIDIA GPU support to the new Tesla and Quadro cards," said Wim Slagter, Director of HPC & Cloud Marketing. "Preliminary studies with the new Tesla P100 and Quadro GP100 cards show that our customers can cut the time for typical ANSYS Mechanical models in half, enabling them to innovate products faster across the entire life cycle."


ANSYS® Fluent® 17.0 features multi-GPU support to deliver higher productivity in CFD simulations. This performance enhancement is the result of innovative GPU-accelerated solvers developed by NVIDIA in collaboration with ANSYS (called AmgX) and the license scheme in ANSYS. The implementation in Fluent accelerates pressure-based coupled flow solver, speeding up the flow portion of CFD simulations. This benefit can simply be unlocked by adding Tesla P100 GPUs to any existing HPC infrastructure. It is designed to run across multiple nodes with multiple GPUs in a cluster configuration, just like CPU systems. Please refer to the NVIDIA application note on Accelerating ANSYS Fluent 17.0 Using NVIDIA GPUs for more details on using GPUs in Fluent 17.0

The chart below compares the performance of Tesla P100 GPU boards versus CPUs in ANSYS Fluent 17.0 of a water cooling jacket model run on a single node server.


Boeing Landing Gear Tesla Ansys Fluent

Internal Flow Tesla Ansys Fluent



RECOMMENDED PROFESSIONAL PRODUCTS


The powerful GPU computing capabilities in ANSYS was developed on NVIDIA Professional GPUs. A CUDA-capable NVIDIA GPU (CUDA v4.2 or above) should be used. Suggested GPUs from the NVIDIA® Tesla® Kepler™ product family or NVIDIA® Quadro® Kepler product family are recommended.

NVIDIA GPU computing products are designed to deliver the highest computational performance to accelerate computations in ANSYS software.

Tesla Benefits

Highest Computational Performance
> High-speed double precision operations
> Large dedicated memory
> CUDA-Accelerated math libraries
> High-speed bi-directional PCIe communication
> NVIDIA GPUDirect™ with InfiniBand
Most Reliable
> ECC memory
> Rigorous stress testing
> ANSYS QA testing
Best Supported
> Professional support network
> Large and growing developer community
> OEM system integration
> Long-term product lifecycle
> 3 year warranty
> Cluster & system management tools
   (server products)
> Windows remote desktop support


Recommended Configurations

Servers/Clusters
> New System Purchase

ANSYS Fluent:
Each node with
    > 2 CPU sockets (up to 16 CPU cores each); recommend 2 GPUs per CPU socket
    > Total 128 to 256 GBs of CPU memory
    > Disk with minimum 2000 GB (scratch)
> GPU OPTIONS
    > Tesla P100 or Tesla K80

ANSYS Mechanical:
Each node with
    > 2 CPU sockets (8-32 CPU cores total); recommend 2 GPUs per CPU socket
    > Total 128 to 256 GBs of CPU memory
    > Disk with minimum 2000 GB (scratch)
> GPU OPTIONS
    > Tesla P100 or Tesla K80

Workstations
> New System Purchase

ANSYS Mechanical:
    > 2 CPU sockets (8-32 CPU cores total); recommend 1 GPU per CPU socket
    > Total 48 GBs of CPU memory or more;
    > Disk with minimum 500 GB
    > SSD with minimum 1000 GB
> GPU OPTIONS
    > Quadro GP100 or Quadro K6000 for design/pre- & post-processing and double precision compute.

    OR

    > Quadro M-series or Quadro P-series for design/pre-& post-processing.

NVIDIA Tesla and Quadro products are available from all major professional workstation OEMs. Only Tesla GPU computing products are designed and qualified for compute cluster deployment.

BUY OPTIMIZED SYSTEMS


NVIDIA partners with system vendors to provide optimal solutions that accelerate your HPC workloads. Buy now and enjoy all the benefits of GPU-acceleration on ANSYS.

For a complete list of NVIDIA Partner Network (NPN) providers, go to Quadro Where to Buy and Tesla Where to Buy pages.
