GET THE MOST OUT OF INVENTOR WITH NVIDIA QUADRO GPUS
Divider

DESIGN WITHOUT LIMITATIONS.

NVIDIA Quadro professional graphics cards provide fast, responsive experiences for Inventor, as well as all the other applications in the Product Design Suite. This means you can now dial up the complexity of your designs, visualise every angle faster, and work out issues earlier in the design cycle.

The latest NVIDIA® Quadro® GPUs provide almost 3x faster performance1 over previous generations in Inventor, so you can explore all your ideas and still get your projects done on time. With 2 GB of built-in memory in the Quadro 4000, the NVIDIA GPUs recommended for Inventor can handle just about any amount of work you throw at them.

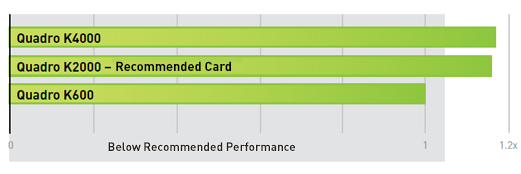

INVENTOR BENCHMARK RESULTS1

Relative Performance

inventor and Quadro GPU benchmark results

SHOWCASE BENCHMARK RESULTS2

Relative Performance

showcase and Quadro GPU benchmark results



QUICKLY PREPARE FOR DESIGN REVIEWS



NVIDIA lets you take advantage of Showcase in the Product Design Suite for reviews and product walk-throughs. As you can see, the more graphics horsepower you have, the faster Showcase will run. So you no longer need to worry if you have enough time to set up that perfect scene.



CREATE FAST PHOTOREALISTIC RENDERS



3ds Max in your suite gives you the power to create stunning photorealistic renderings for client reviews or marketing materials much faster. Because 3ds Max also takes full advantage of your graphics card, what you use can greatly affect how fast the renders will finish. So, why wait overnight and catch mistakes after it’s too late?

Now, you can render up to 9x faster in 3ds Max using NVIDIA Maximus technology while still working in all your other apps. This means creating expensive and time-consuming physical prototypes is finally a thing of the past.

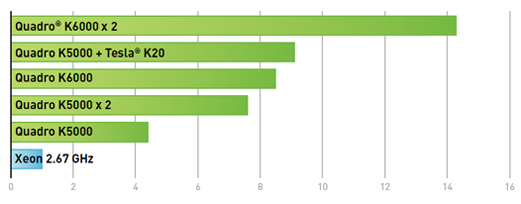

MAXIMUS PERFORMANCE FOR 3DS MAX 2012 WITH IRAY3

Relative Performance Scale vs 8 CPU Cores

MAXIMUS PERFORMANCE FOR 3DS MAX 2012 WITH IRAY



CERTIFIED AND RECOMMENDED GPUS

NVIDIA Maximus



JOIN THE RENDERING REVOLUTION

Create stunning photorealistic renderings using 3ds Max and NVIDIA GPUs

Create stunning photorealistic renderings using 3ds Max and NVIDIA GPUs. Image courtesy of Jeff Patton.



Inventor images generated by Quadro Graphics

Digger – Furnished by Autodesk

Digger – Furnished by Autodesk

Digger powerplant – Furnished by Autodesk

Digger powerplant – Furnished by Autodesk

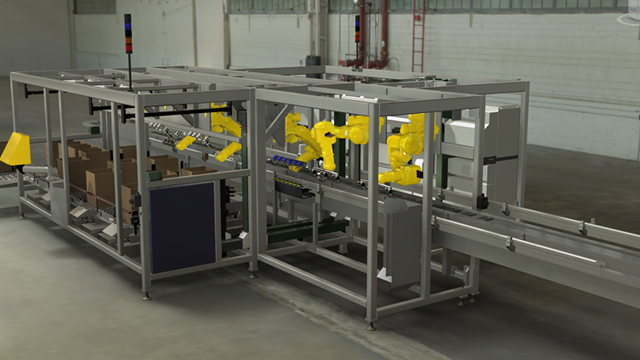

Big Sky assembly rack – Provided by Big Sky Engineering

Big Sky assembly rack – Provided by Big Sky Engineering

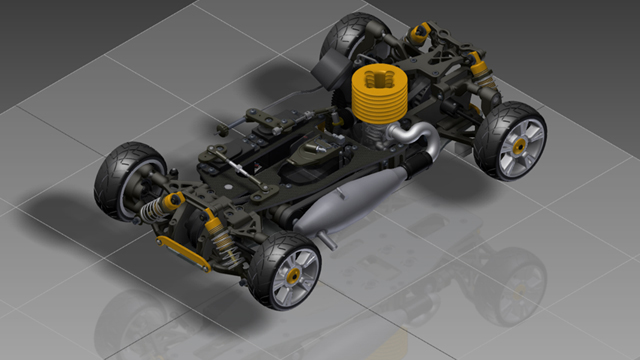

Nitro RC car – Furnished by Autodesk

Nitro RC car – Furnished by Autodesk

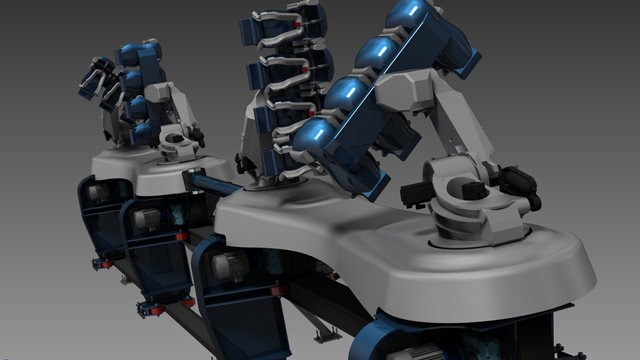

Rail truck for a factory – Provided by Dynamic Structures Ltd.

Rail truck for a factory – Provided by Dynamic Structures Ltd.

RECOMMENDED GRAPHICS SOLUTIONS

  NVIDIA® MAXIMUS™ QUADRO K5000 QUADRO 4000 QUADRO 2000
Application

Intensive use of CAE or 3ds Max rendering.

Occasional use of CAE or 3ds Max rendering.

Frequent use of Showcase with Inventor.

Inventor use only.

Usage
  • Highest-performance rendering engine.
  • Simultaneous rendering/CAE and design application usage.
  • Excellent Moldflow performance.
  • Excellent 3ds Max performance.
  • Largest assemblies and complex surface models.
  • Best choice for complex geometry, transparency, and hidden line removal.
  • Excellent Showcase performance with Inventor.
  • Large assemblies with simple parts.
  • Small assemblies with complex parts.
  • Small/medium assemblies with simple parts
GPU Memory Maximus Configurations 4 GB 2 GB 1 GB


BUILT FOR PROFESSIONALS

Autodesk



Autodesk and NVIDIA collaborate closely on product development to deliver a reliable user experience, so everything will perform just the way you expect from day one. Quadro graphics solutions are engineered, built, and tested by NVIDIA to provide you with the performance and reliability you need, whenever you need it. And with a three-year warranty, plus direct support from NVIDIA, Quadro solutions ensure the highest standards of quality, delivering industry-leading performance, capabilities, and reliability.




1 - Inventor performance test: NVIDIA benchmark consists of a collection of models manipulated under typical usage in Inventor 2013 with Shaded and Shaded with Edges display modes turned on. The test is with a Xeon E3-1245 CPU, 4GB RAM, and the specified Quadro graphics card running Windows 7 64bit.

2 - Showcase performance test: NVIDIA benchmark consists of a collection of user models from AutoCAD and Inventor manipulated under typical usage in Showcase 2013. The test is with a Xeon E3-1245 CPU, 4GB RAM, Intel Integrated P4000 and the specified Quadro graphics card running Windows 7 64bit.

3 - 3ds Max Benchmarks: Test consists of a collection of hard surface objects rendered outdoors in 3ds Max with iray 1.2 comparing an NVIDIA Tesla C2075 and the indicated Quadro GPU with the CPU relative to an Intel 3ghz x5570 Xeon CPU with 8 cores rendering. ECC has been turned off for all GPUs. Values shown are percent increase in render speed relative to CPU.



Image courtesy of Jeff Patton.

Digger – Furnished by Autodesk

Digger – Furnished by Autodesk

Digger powerplant – Furnished by Autodesk

Digger powerplant – Furnished by Autodesk

Big Sky assembly rack – Provided by Big Sky Engineering

Big Sky assembly rack – Provided by Big Sky Engineering

Nitro RC car – Furnished by Autodesk

Nitro RC car – Furnished by Autodesk

Rail truck for a factory – Provided by Dynamic Structures Ltd.

Rail truck for a factory – Provided by Dynamic Structures Ltd.
