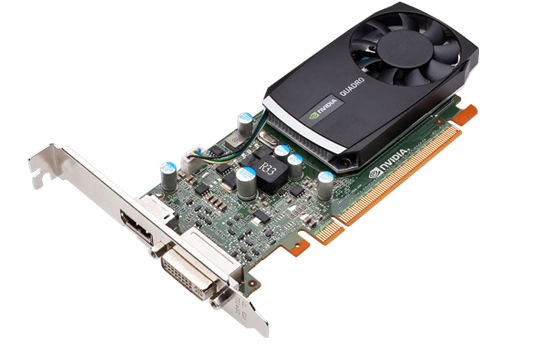

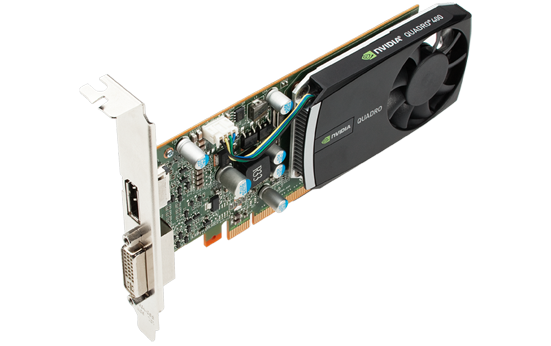

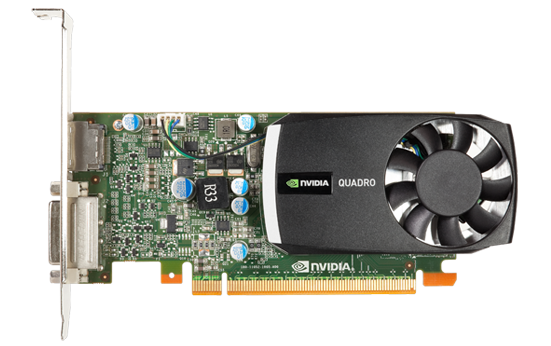

NVIDIA® Quadro® 400 delivers superior professional application performance and capabilities compared to consumer graphics. Quadro 400 provides up to 5X performance gains over high-end consumer gaming cards and up to 10X improvement over integrated graphics processors in industry leading CAD/CAM applications*. Designed for efficiency, Quadro 400 consumes less than 35W and has a low-profile footprint flexible enough to fit into any workstation. Advanced capabilities such as Mosaic™ and nView® technologies allows you to span and efficiently manage your entire Windows desktop across multiple displays. All of which means you can design, iterate and deliver higher quality results in less time.
Mosaic Technology
NVIDIA Mosaic Technology enables transparent scaling of any application across up to eight displays, using multiple graphics solutions. |
 |
nView Advanced Desktop Software
The NVIDIA® nView® Advanced Desktop Software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity. |
 |
30-Bit Color Fidelity
30-bit color fidelity (10-bits per color) enables billions of color variations for rich, vivid image quality with the broadest dynamic range. |
 |
3D Vision and 3D Vision Pro
Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (NVIDA® 3D Vision™) or RF (3D Vision Pro) technology enables a range of immersive environments ranging from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro sold separately.
|
 |
GPU Features
Unified Driver Architecture (UDA)
The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new solution because all NVIDIA® Quadro® products work with the same driver software.
Hardware 3D Window Clipping
Hardware accelerated clip regions enable faster data transfer between a window and the frame buffer to improve overall graphics performance.
Display Features
High-Quality Display Connectivity

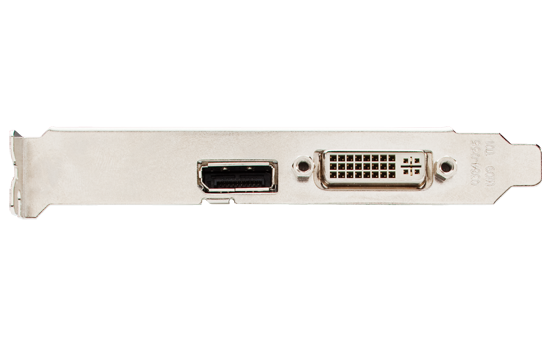

Drives ultra-high-resolution panels, producing phenomenal image quality. Support two active connectors including, dual-link DVI with up to 3840 x 2400 @ 24Hz on each panel, DisplayPort with up to up to 2560 x 1600, or HDMI for integrated audio and video thru the GPU.
30-Bit Color Fidelity
30-bit color fidelity (10-bits per color) enables billions of color variations for rich, vivid image quality with the broadest dynamic range.
3D Vision and 3D Vision Pro
Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enables a range of immersive environments ranging from your desktop workstation to collaborative work spaces. NVIDIA® 3D Vision™ and 3D Vision Pro sold separately.
OpenGL Quad Buffered Stereo Support
OpenGL Quad Buffered Stereo offers professional applications the capability of smooth and immersive 3D Stereo experience.
Software Support
CUDA Parallel Computing Architecture
Quadro solutions leverage general purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA™ is accelerating techniques like ray tracing, video and image processing, and computation fluid dynamics.
Cg Programming
Programmable GPU leverages Cg high-level, open-standard shading language to enable the creation and integration of real-time photorealistic effects into 3D models, scenes and designs.
Microsoft Windows 7 Support
Take advantage of all the new and compelling features included with Windows 7, delivering unprecedented application performance, advanced visual realism, and premium reliability with superior application compatibility on mobile and desktop workstations.
NVIDIA Graphics API Extensions
NVIDIA provides a set of extensions to standard graphics APIs for Linux and Windows, enabling applications to take maximum advantage of state-of-the-art GPU capabilities.
NVIDIA Application Acceleration Engines Support
Supercharge application performance and capabilities with highly optimized software modules, including SceniX and OptiX for advanced creative and investigative possibilities.
Mosaic Technology
NVIDIA Mosaic Technology enables transparent scaling of any application across up to eight displays, using multiple graphics solutions.
nView Advanced Desktop Software
The NVIDIA® nView® Advanced Desktop Software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
Industry Standard
Compatible with Industry Standard Architectures
Compatible with Microsoft and Linux operating systems, and Intel and AMD x86 32- and 64-bit microprocessor architectures.
PCI Express 2.0 Compliantture
Doubles the data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction).
Ultra-Quiet Design
Acoustics lower than 28db for an ultra-quiet desktop environment.
