NVS

NVS 510 Graphics Card

Reliably visualise any data across four monitors with the energy efficient NVIDIA® NVS™ 510 business graphics card.

Checking for products...
Where To Buy

Overview

The NVIDIA® NVS™ 510 offers the latest in graphics and display technologies along with industry-leading, multi-display management capabilities in an energy efficient, low-profile form factor. This makes it the ideal graphics solution for professionals who need to efficiently visualise and digest a great deal of information in the financial trading, command and control, and digital-signage markets.

Four ultra-high resolution display outputs in Low-Profile (LP) form factor

Four ultra-high resolution display outputs in Low-Profile (LP) form factor

The NVIDIA NVS 510 features four compact mini DisplayPort connectors with a custom built-in retention mechanism, delivering ultra-high resolutions up to 3840x2160 @ 60 Hz. Plus, it supports advanced DisplayPort 1.2 features like Multi Stream Technology and Stream Cloning1, which enables efficient cable management, as well as cost-effective multi-display installations.

High-speed 2GB graphics memory and power-efficient performance

High-speed 2GB graphics memory and power-efficient performance

The NVS 510 is the ideal graphics solution, giving you the optimal balance of performance, form factor, and power efficiency to drive up to four displays natively. The NVS 510 also leverages the latest NVIDIA Kepler™ GPU technology and 2 GB of dedicated high-performance graphics memory. This enables it to efficiently deliver over 3x greater performance over previous-generation NVS solutions without increasing overall power consumption.

Simplified enterprise-wide deployment and management

Simplified enterprise-wide deployment and management

Along with NVIDIA’s Unified Driver Architecture (UDA) and suite of enterprise management tools, the NVS 510 offers a highly reliable solution for seamless wide-scale deployment and simplified resource management. The NVS 510’s ultra-quiet active-cooling technology and low-profile form factor give IT administrators the freedom to fit multiple NVS 510 cards into space- and power-constrained systems or existing installations.

1 - Stream Cloning enables NVS 510 to clone up-to four instances of each display output

Features

Display and Video Features

Quad Display Support1

All-new NVS 510 display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840x2160 @60Hz. NVS510, when used with the nView Desktop Software utility, makes it easy to deploy multiple displays across a desktop or build an expansive digital signage wall.

New DisplayPort 1.2 Features (with Audio)

NVS 510's integrated DisplayPort 1.2 Engine produces phenomenal photorealistic image quality while driving ultra-high-resolution panels (up to 3840 x 2160 @ 60Hz). NVS 510 also supports advanced Display Port 1.2 features like multi-stream technology (MST) and stream cloning, which enable efficient cable management. MST allows an end-user to drive up to for independent displays simultaneously from any one display port output, while stream cloning enables NVS 510 to clone up-to four instances of each display output to drive a maximum of 16 displays.

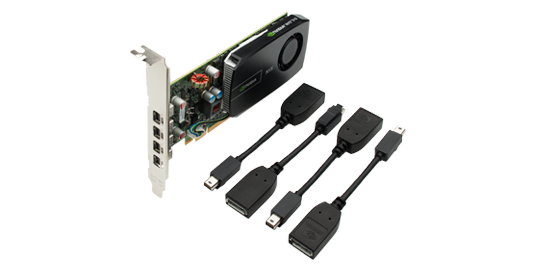

Versatile Connectivity Options using Mini DisplayPort (mDP) Connector

End users can securely2 connect to the most exhaustive options of display monitors and HDMI capable devices either by using the included mDP to Display Port cable to take advantage of widely deployed DiplayPort cables and dongles, or directly connect using mini DisplayPort based cables and dongles.

Multi-Display Experience with NVIDIA® Mosaic™ Technology3

Mosaic Technology enables seamless taskbar spanning as well as transparent scaling of the desktop and applications across up to 8 displays (using two NVS 510 Graphics Cards) from a single workstation or PC while delivering full performance and image quality.

NVIDIA High-Definition Video Technology

Combines high-definition video processors and software that delivers unprecedented picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality dual HD video playback—with low CPU utilization and power consumption.

H.264 encoder

Dedicated H.264 encode engine that's independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.4

NVIDIA FXAA and TXAA

Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.4

Balanced Power and Performance

Intelligent Power Management

NVS 510's Energy Star compliant design reduces overall system energy costs by intelligently adapting the total power utilization of the graphics subsystem based on the applications being run by the end user. This power-optimised design helps reduce Total Cost of Ownership (TCO) and increase reliability.

Large Dedicated Graphics Memory with Ultra-Fast Memory Bandwidth

NVS 510's 2 GB of dedicated memory delivers high throughput needed to drive hardware accelerated dual HD Blu-Ray video streams or interact with large textured models on up to 4 ultra-high resolution displays.

Power-efficient Performance

The NVS 510 is the ideal graphics solution to natively drive four displays, providing the optimal balance of performance, form factor and power efficiency when compared to dual Graphics Cards configurations. NVS 510 utilizes the latest NVIDIA Kepler GPU technology to deliver over 3x greater performance and doubles the memory bandwidth for faster throughput over the previous generation NVS solutions without increasing overall power consumption.

NVIDIA® CUDA®

Parallel-computing architecture that enables dramatic increases in computing performance by harnessing the power of the GPU (graphics processing unit). NVS 510 contains 192 NVIDIA CUDA parallel-computing cores compatible with all GPU-accelerated web, photo, video applications, as well as next-generation Internet technologies.

PCI Express 2.0 Compliance5

Supports data transfer rates up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (8 GB/sec in each direction)

Reliability Features

NVIDIA Unified Driver Architecture (UDA)

Guarantees forward and backward compatibility with software drivers. This simplifies upgrading to a new NVIDIA solution because the latest driver supports all current NVIDIA products.

Ultra-Quiet High Reliability Cooling Solution

Built with a highly reliable, ultra-quiet fansink that efficiently cools the graphics without taxing the system fans resulting in a quieter desktop environment, as well as enabling multi-NVS 510 configurations in workstations and desktop systems.

Compatibility with Industry-Standard Architectures

Compatible with x86 32 and 64-bit microprocessor architectures and operating systems from Intel / AMD and Microsoft / Linux.

Tested and Certified across multiple platforms

NVS 510 is tested on industry-leading business applications as well as certified to work in commercial desktop and workstations from multiple PC System Vendors to provide a highly reliable business environment.

Manageability Features

NVIDIA Enterprise Management Tools

Exhaustive Enterprise Management tools for maximizing your system uptime by enabling seamless wide scale deployment. Allows remote query and control of graphics and display settings for systems spread across installations.

NVIDIA® nView® Desktop® Software

This software utility delivers maximum flexibility for single large-display or multi-display options. This provides unprecedented end-user control of the desktop experience for increased productivity.

Low-Profile and Flexible Form Factor

Simplifies IT administration and deployment throughout an enterprise. Regardless of desktop system (standard tower PC, workstation, small form factor system) or the display type (LCD, DLP, plasma), NVS 510 fits into any existing installations without being disruptive.

Dedicated enterprise support to ensure system uptime

Dedicated NVIDIA NVS support team for premium enterprise customers that are easily accessible to resolve their unique issues quickly.

1 - NVS 510 supports a maximum of 4 simultaneous displays in Win7, Win8 and Linux OS’s only (maximum of 2 displays in Windows XP).
2 - When used with the included latched mini DisplayPort to DisplayPort Cable Adaptor.
3 - Mosaic Technology is supported in Win 7, Win8 and Linux only.
4 - This feature requires implementation by software applications and is not a stand-alone utility. Please contact quadrohelp@nvidia.com for details on availability.

Specifications

NVIDIA NVS 510

GPU Specs

CUDA Cores

192

GPU Memory Specs

Memory Size Total

2.0 GB DDR3

Memory Interface

128-bit

Memory Bandwidth (GB/sec)

28.5

Display Support

Display Connector

Mini DisplayPort (mDP)

# of Connectors

4

DisplayPort

4

Single-Link DVI-D

41

Dual-Link DVI-D

42
VGA 43
Maximum Display Resolution
(Digital @ 60Hz)
3840x21604
Maximum Display Resolution
(Analog @ 60 Hz)
1920x12005
Number of Slots 1
Audio Support (via DisplayPort)

Technologies Supported

Shader Model

5

OpenGL

4.3

Microsoft DirectX

11

NVIDIA CUDA Architecture

NVIEW Display Management Software

Energy Specs

EnergyStar Enabling

Maximum Power Consumption

35 W

Acoustics

Active Fansink

1 - Using mDP to SL-DVI, or included mDP-DP Cable with a DP to SL-DVI Cable Adaptor.
2 - Using included mDP-DP cable with DP to DL-DVI Cable Adaptor.
3 - Using included mDP-DP cable with DP to VGA Cable Adaptor.
4 - Through native DisplayPort (DP).
5 - Through DP to VGA Cable Adaptor.
