Quadro Mobile Graphics Cards
Divider

The Quadro mobile workstation product family offers a complete range of graphics with unmatched performance and quality for the most demanding professionals on the go. From digital content creators on a movie set, to design engineers at a remote plant, to geo-scientists on an oil rig, mobile professionals bring Quadro graphics where their work is.

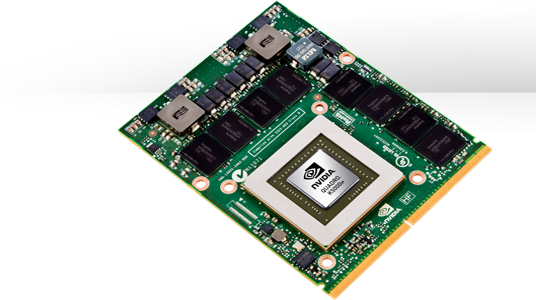

Laptops powered by Quadro


  17.3" Platform 15.6" Platform
GRAPHICS FEATURES Quadro K5100M Quadro K4100M Quadro K3100M Quadro K2100M Quadro K1100M Quadro K610M Quadro K510M
CPU/Mobile Platform Generation Haswell/
Shark Bay
Haswell/
Shark Bay
Haswell/
Shark Bay
Haswell/
Shark Bay
Haswell/
Shark Bay
Haswell/
Shark Bay
Haswell/
Shark Bay
NVIDIA® CUDA® Parallel Processor Cores 1536 1152 768 576 384 192 192
Memory Size 8GB3 4GB 4GB 2GB 2GB 1GB 1GB
Memory Type GDDR5 GDDR5 GDDR5 GDDR5 GDDR5 GDDR5 GDDR5
Memory Interface 256-bit 256-bit 256-bit 128-bit 128-bit 64-bit 64-bit
Memory Bandwidth 115.2 GB/s 102.4 GB/s 102.4 GB/s 48.0 GB/s 44.8 GB/s 20.8 GB/s 19.2 GB/s
Max Power Consumption, TGP (Graphics Sub-System) 100W 100W 75W 55W 45W 30W 30W
OpenGL 4.51 4.51 4.51 4.51 4.51 4.51 4.51
Shader Model 5.0 5.0 5.0 5.0 5.0 5.0 5.0
DirectX 11.22 11.22 11.22 11.22 11.22 11.22 11.22
PCI-E Generation 3 3 3 3 3 3 3
Display Port 1.2 1.2 1.2 1.2 1.2 1.2 1.2
Precision FP32 FP32 FP32 FP32 FP32 FP32 FP32
NVIDIA® 3D Vision® Pro
NVIDIA® Mosaic Technology
NVIDIA® nView® Display Management Technology
NVIDIA® Optimus™ Technology







1 - Product is based on a published Khronos Specification, and is expected to pass the Khronos Conformance Testing Process when available. Current conformance status can be found at www.khronos.org/conformance
2 - GPU supports DX 11.2 API, Hardware Feature Level 11_0
3 - ECC (Error Correcting Code) on GDDR5 memory only
